Gauss–Jordan elimination

3.3. Gauss–Jordan elimination#

To solve a system of linear equations like

(3.27)#\[\begin{align} 2x_1 + 5x_2 &= 2\\ 13x_2 &= -26 \end{align}\]

Note that the second equation is easily solved for \(x_2 = -2\), which can be substituted in the first equation to give \(x_1 = (2-5x_2)/2 = 6\). If we can bring systems so that one variable is isolated, we can work backwards to solve the others! How do we do this systematically for equations?

Because of 2 and 3, we can also add a multiple of one equation to another.

For example, suppose we instead started with the equations

(3.28)#\[\begin{align} 2x_1 + 5x_2 &= 2 \\ -4x_1 + 3x_2 &= -30 \end{align}\]

Adding twice the first equation to the second equation gives \(13 x_2 = -26\), from which we were able solve before!

This process can be tedious, particularly when there are more variables and equations. Matrices provide a systematic approach to both performing elementary operations to isolate variables, as well as to carry out subsequent substitution. This entire procedure is called Gauss-Jordan elimination with backsubstitution.

  1. Rewrite the equations as \(\vv{A}\vv{x} = \vv{b}\) using a matrix and vectors

    (3.29)#\[\begin{equation} \begin{bmatrix}2 5 \\ -4 3\end{bmatrix} \begin{bmatrix}x_1 \\ x_2\end{bmatrix} = \begin{bmatrix}2 \\ -30\end{bmatrix} \end{equation}\]
  2. Form the “augmented” matrix \([\vv{A} \vv{b}]\)

    (3.30)#\[\begin{equation} \mathbf{A} = \begin{bmatrix} 2 & 5 & 2\\ -4 & 3 & -30\end{bmatrix} \end{equation}\]
  3. Perform elementary operations on rows to create “pivot” points in each row. The goal is to get a number on the diagonals and zeros below. It is OK to have a zero on the diagonal if there are no nonzero values underneath it.

    (3.31)#\[\begin{equation} \begin{bmatrix} 2 & 5 & 2 \\ -4 & 3 & -30 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ +2 R_1 \end{matrix} \to \begin{bmatrix} 2 & 5 & 2 \\ 0 & 13 & -26 \end{bmatrix} \end{equation}\]

    Here, we noted that we added twice Row 1 to Row 2 to eliminate the 4 under the first pivot point 2.

  4. When you reach the bottom row, check there are no rows of zeros with a nonzero last column. This would be equivalent to a false equation (like \(0=1\)), meaning there is no solution and no further work is needed.

  5. Work back up to turn pivot points into ones and get zeros above in each column

    (3.32)#\[\begin{align} \begin{bmatrix} 2 & 5 & 2 \\ 0 & 13 & -26 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \div 13 \end{matrix} &\to \begin{bmatrix} 2 & 5 & 2 \\ 0 & 1 & -2 \end{bmatrix} \begin{matrix}-5 R_2 \\ \vphantom{R_2}\end{matrix} \\ &\to \begin{bmatrix} 2 & 0 & 12 \\ 0 & 1 & -2 \end{bmatrix} \begin{matrix}\div 2 \\ \vphantom{R_2}\end{matrix} \\ &\to \begin{bmatrix} 1 & 0 & 6 \\ 0 & 1 & -2 \end{bmatrix} \end{align}\]
  6. The solution comes from reexpressing the augmented matrix as \(\vv{A} \vv{x} = \vv{b}\).

    (3.33)#\[\begin{equation} \begin{bmatrix} 1 & 0 \\ 0 & 1 \end{bmatrix} \begin{bmatrix} x_1 \\ x_2 \end{bmatrix} = \begin{bmatrix} 6 \\ -2 \end{bmatrix} \end{equation}\]

    Or, \(x_1 = 6\) and \(x_2 = -2\).

Example: Pump circuit

Incompressible flow can be written analogous to an electrical circuit as

(3.34)#\[\begin{equation} -\Delta P = RQ \end{equation}\]

where \(\Delta P\) is the pressure change, R is the resistance, and Q is the volumetric flow rate. For the following pump “circuit”:

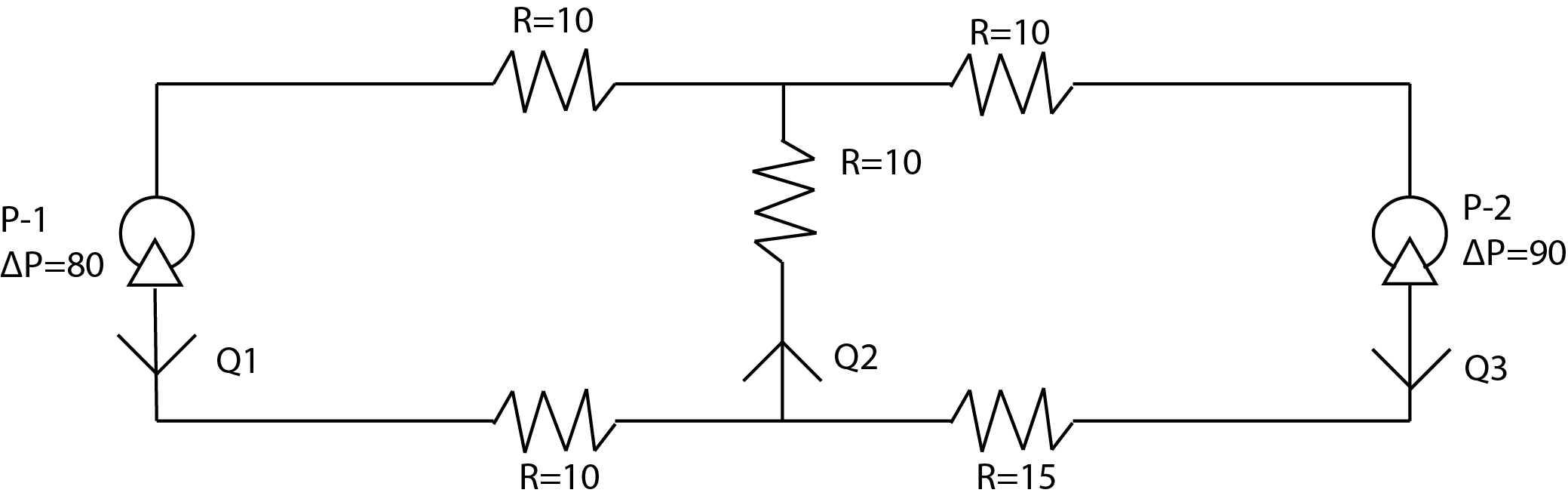

Fluid System Modeled as Circuit

The pressure and mass balances for the nodes and loop give:

(3.35)#\[\begin{align} Q_1 &+ Q_3 = Q_2 \\ Q_2 &= Q_1 + Q_3 \\ 80 &= 10Q_2 + 20Q_1 \\ 90 &= 25Q_3 + 10Q_2 \end{align}\]

Find \(Q_1\), \(Q_2\), and \(Q_3\).


First, rearrange the equations into consistent linear form:

(3.36)#\[\begin{align} Q_1 - Q_2 + Q_3 &= 0 \\ Q_1 - Q_2 + Q_3 &= 0 \\ 20Q_1 + 10Q_2 + 0Q_3 &= 80 \\ 0Q_1 + 10Q_2 + 25Q_3 &= 90 \end{align}\]

Then, rewrite using matrix representation:

(3.37)#\[\begin{equation} \begin{bmatrix} 1 & -1 & 1 \\ 1 & -1 & 1 \\ 20 & 10 & 0 \\ 0 & 10 & 25 \end{bmatrix} \begin{bmatrix} Q_1 \\ Q_2 \\ Q_3 \end{bmatrix} = \begin{bmatrix} 0 \\ 0 \\ 80 \\ 90 \end{bmatrix} \end{equation}\]

Now, perform Gauss-Jordan elimination steps to solve for the unknown flow rates. We form the augmented matrix, then use Row 1 to eliminate values in Rows 2 and 3:

(3.38)#\[\begin{equation} \begin{bmatrix} 1 & -1 & 1 & 0 \\ -1 & 1 & -1 & 0 \\ 20 & 10 & 0 & 80 \\ 0 & 10 & 25 & 90 \end{bmatrix} \begin{matrix} \vphantom{R_1} \\ + R_1 \\ -20 R_1 \\ \vphantom{R_1} \end{matrix} \to \begin{bmatrix} 1 & -1 & 1 & 0 \\ 0 & 0 & 0 & 0 \\ 0 & 30 & -20 & 80 \\ 0 & 10 & 25 & 90 \end{bmatrix} \end{equation}\]

Row 2 is all zeros because it was a redundant equation to Row 1. Swap Rows 2 and 4, then use the new Row 2 to eliminate value in Row 3:

(3.39)#\[\begin{equation} \begin{bmatrix} 1 & -1 & 1 & 0 \\ 0 & 10 & 25 & 90 \\ 0 & 30 & -20 & 80 \\ 0 & 0 & 0 & 0 \end{bmatrix} \begin{matrix} \vphantom{R_1} \\ \vphantom{R_1} \\ -3 R_2 \\ \vphantom{R_1} \end{matrix} \to \begin{bmatrix} 1 & -1 & 1 & 0 \\ 0 & 10 & 25 & 90 \\ 0 & 0 & -95 & -190 \\ 0 & 0 & 0 & 0 \end{bmatrix} \end{equation}\]

Normalize Row 3 (divide by -95), then eliminate values above in Column 3:

(3.40)#\[\begin{equation} \begin{bmatrix} 1 & -1 & 1 & 0 \\ 0 & 10 & 25 & 90 \\ 0 & 0 & 1 & 2 \\ 0 & 0 & 0 & 0 \end{bmatrix} \begin{matrix} - R_3 \\ -25 R_3 \\ \vphantom{R_1} \\ \vphantom{R_1} \end{matrix} \to \begin{bmatrix} 1 & -1 & 0 & -2 \\ 0 & 10 & 0 & 40 \\ 0 & 0 & 1 & 2 \\ 0 & 0 & 0 & 0 \end{bmatrix} \end{equation}\]

Normalize Row 2 (divide by 10), then eliminate values above in Column 2:

(3.41)#\[\begin{equation} \begin{bmatrix} 1 & -1 & 0 & -2 \\ 0 & 1 & 0 & 4 \\ 0 & 0 & 1 & 2 \\ 0 & 0 & 0 & 0 \end{bmatrix} \begin{matrix} + R_2 \\ \vphantom{R_1} \\ \vphantom{R_1} \\ \vphantom{R_1} \end{matrix} \to \begin{bmatrix} 1 & 0 & 0 & 2 \\ 0 & 1 & 0 & 4 \\ 0 & 0 & 1 & 2 \\ 0 & 0 & 0 & 0 \end{bmatrix} \end{equation}\]

Turning back into an equivalent system of equations gives the final solution, \(Q_1 = 2\), \(Q_2 = 4\), and \(Q_3 = 2\).

3.3.1. Number of solutions#

The number of solutions for the system of linear equations can be determined from the row-reduced augmented matrix.

  • There is no solution if there is a row of zeroes with a nonzero last column.

    (3.42)#\[\begin{align} \begin{bmatrix} 3 & 2 & 1 & 3 \\ 2 & 1 & 1 & 0 \\ 6 & 2 & 4 & 6 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ -(2/3) R_1 \\ -2 R_1 \end{matrix} &\to \begin{bmatrix} 3 & 2 & 1 & 3 \\ 0 & -1/3 & 1/3 & -2 \\ 0 & -2 & 2 & 0 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \times -3 \\ \div 2\end{matrix} \\ &\to \begin{bmatrix} 3 & 2 & 1 & 3 \\ 0 & 1 & -1 & 6 \\ 0 & -1 & 1 & 0 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \vphantom{R_2} \\ +R_2 \end{matrix} \\ &\to \begin{bmatrix} 3 & 2 & 1 & 3 \\ 0 & 1 & -1 & 6 \\ 0 & 0 & 0 & 12 \end{bmatrix} \end{align}\]

    Since the last row is equivalent to \(0 = 12\), there is a false equation and the system has no solution.

  • There is one solution if there is one pivot for each unknown.

    (3.43)#\[\begin{align} \begin{bmatrix} 3 & 2 & 1 & 3 \\ 2 & 1 & 1 & 0 \\ 6 & 2 & 5 & 6 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ -(2/3) R_1 \\ -2 R_1 \end{matrix} &\to \begin{bmatrix} 3 & 2 & 1 & 3 \\ 0 & -1/3 & 1/3 & -2 \\ 0 & -2 & 3 & 0 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \times -3 \\ \vphantom{R_3} \end{matrix} \\ &\to \begin{bmatrix} 3 & 2 & 1 & 3 \\ 0 & 1 & -1 & 6 \\ 0 & -2 & 3 & 0 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \vphantom{R_2} \\ +2 R_2 \end{matrix} \\ &\to \begin{bmatrix} 3 & 2 & 1 & 3 \\ 0 & 1 & -1 & 6 \\ 0 & 0 & 1 & 12 \end{bmatrix} \begin{matrix} -R_3 \\ +R_3 \\ \vphantom{R_3} \end{matrix} \\ &\to \begin{bmatrix} 3 & 2 & 0 & -9 \\ 0 & 1 & 0 & 18 \\ 0 & 0 & 1 & 12 \end{bmatrix} \begin{matrix} -2R_2 \\ \vphantom{R_3} \end{matrix} \\ &\to \begin{bmatrix} 3 & 0 & 0 & -45 \\ 0 & 1 & 0 & 18 \\ 0 & 0 & 1 & 12 \end{bmatrix} \begin{matrix} \div 3 \\ \vphantom{R_3} \end{matrix} \\ &\to \begin{bmatrix} 1 & 0 & 0 & -15 \\ 0 & 1 & 0 & 18 \\ 0 & 0 & 1 & 12 \end{bmatrix} \end{align}\]

    There are 3 pivot points and 3 unknowns, the solution is \(x_1 = -15\), \(x_2 = 18\), and \(x_3 = 12\).

  • There are infinitely many solutions if there are fewer pivots than unknowns.

    (3.44)#\[\begin{align} \begin{bmatrix} 3 & 2 & 1 & 3 \\ 2 & 1 & 1 & 0 \\ 6 & 2 & 4 & -6 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ -(2/3) R_1 \\ -2 R_1 \end{matrix} &\to \begin{bmatrix} 3 & 2 & 1 & 3 \\ 0 & -1/3 & 1/3 & -2 \\ 0 & -2 & 2 & -12 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \times -3 \\ \div -2\end{matrix} \\ &\to \begin{bmatrix} 3 & 2 & 1 & 3 \\ 0 & 1 & -1 & 6 \\ 0 & 1 & -1 & 6 \end{bmatrix} \begin{matrix}-2 R_2 \\ \vphantom{R_2} \\ \vphantom{R_3} \end{matrix} \\ &\to \begin{bmatrix} 3 & 0 & 3 & -9 \\ 0 & 1 & -1 & 6 \\ 0 & 0 & 0 & 0 \end{bmatrix} \begin{matrix}\div 3 \\ \vphantom{R_2} \\ \vphantom{R_3} \end{matrix} \\ &\to \begin{bmatrix} 1 & 0 & 1 & -3 \\ 0 & 1 & -1 & 6 \\ 0 & 0 & 0 & 0 \end{bmatrix} \end{align}\]

    There are 2 pivot points but 3 unknowns, so there is one free variable. The solution is \(x_1 = -x_3 - 3\) and \(x_2 = x_3 + 6\), with \(x_3\) free.

3.3.2. Skill builder problems#

  1. Solve using Gauss-Jordan elimination

    (3.45)#\[\begin{align} 5 x_1 - 2 x_2 &= 20.9 \\ -x_1 + 4x_2 &= -19.3 \end{align}\]
    Solution

    Form the augmented matrix and perform row reduction:

    (3.46)#\[\begin{align} \begin{bmatrix} 5 & -2 & 20.9 \\ -1 & 4 & -19.3 \end{bmatrix} \begin{matrix} {\rm swap} \\ \vphantom{R_2}\end{matrix} &\to \begin{bmatrix} -1 & 4 & -19.3 \\ 5 & -2 & 20.9\end{bmatrix} \begin{matrix} \times -1 \\ \vphantom{R_2}\end{matrix} \\ &\to \begin{bmatrix} 1 & -4 & 19.3 \\ 5 & -2 & 20.9\end{bmatrix} \begin{matrix} \vphantom{R_1} \\ -5 R_1 \end{matrix} \\ &\to \begin{bmatrix} 1 & -4 & 19.3 \\ 0 & 18 & -75.6\end{bmatrix} \begin{matrix} \vphantom{R_1} \\ \div 18 \end{matrix} \\ &\to \begin{bmatrix} 1 & -4 & 19.3 \\ 0 & 1 & -4.2\end{bmatrix} \begin{matrix} +4 R_2 \\ \vphantom{R_2} \end{matrix} \\ &\to \begin{bmatrix} 1 & 0 & 2.5 \\ 0 & 1 & -4.2\end{bmatrix} \end{align}\]

    so \(x_1 = 2.5\) and \(x_2 = -4.2\).

  2. Solve using Gauss-Jordan elimination

    (3.47)#\[\begin{align} x_1 + 4 x_2 = 8 \\ 2 x_1 + 8 x_2 = 17 \end{align}\]
    Solution
    (3.48)#\[\begin{align} \begin{bmatrix} 1 & 4 & 8 \\ 2 & 8 & 17 \end{bmatrix} \begin{matrix} \vphantom{R_1} \\ -2 R_1\end{matrix} &\to \begin{bmatrix} 1 & 4 & 8 \\ 0 & 0 & 1\end{bmatrix} \end{align}\]

    The equations do not have a solution because the last row is false.

  3. Solve using Gauss-Jordan elimination

    (3.49)#\[\begin{align} x_1 + x_2 + x_2 = 2 \\ 4x_2 + 6 x_3 = -12 \\ x_1 + x_2 + x_3 = 2 \end{align}\]
    Solution
    (3.50)#\[\begin{align} \begin{bmatrix} 0 & 1 & 1 & -2 \\ 0 & 4 & 6 & -12 \\ 1 & 1 & 1 & 2 \end{bmatrix} \begin{matrix} \vphantom{R_1} \\ \rm shuffle \\ \vphantom{R_3} \end{matrix} &\to \begin{bmatrix} 1 & 1 & 1 & 2 \\ 0 & 1 & 1 & -2 \\ 0 & 4 & 6 & -12 \end{bmatrix} \begin{matrix} \vphantom{R_1} \\ \vphantom{R_2} \\ \ -4 R_2 \end{matrix} \\ &\to \begin{bmatrix} 1 & 1 & 1 & 2 \\ 0 & 1 & 1 & -2 \\ 0 & 0 & 2 & -4 \end{bmatrix} \begin{matrix} \vphantom{R_1} \\ \vphantom{R_2} \\ \div 2 \end{matrix} \\ &\to \begin{bmatrix} 1 & 1 & 1 & 2 \\ 0 & 1 & 1 & -2 \\ 0 & 0 & 1 & -2 \end{bmatrix} \begin{matrix} -R_3 \\ -R_3 \\ \vphantom{R_3} \end{matrix} \\ &\to \begin{bmatrix} 1 & 1 & 0 & 4 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & -2 \end{bmatrix} \begin{matrix} -R_2 \\ \vphantom{R_2} \\ \vphantom{R_3} \end{matrix} \\ &\to \begin{bmatrix} 1 & 0 & 0 & 4 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & -2 \end{bmatrix} \end{align}\]

    so \(x_1 = 4\), \(x_2 = 0\), and \(x_3 = -2\).

  4. Solve using Gauss-Jordan elimination

    (3.51)#\[\begin{align} 4x_2 - 11x_3 &= 24 \\ 3x_1 - 11x_2 - 2x_3 &= -6 \\ 6x_1 - 17x_2 + x_3 &= 18 \end{align}\]
    Solution
    (3.52)#\[\begin{align} \begin{bmatrix} 0 & 4 & 4 & 24 \\ 3 & -11 & -2 & -6 \\ 6 & - 17 & 1 & 18 \end{bmatrix} \begin{matrix}{\rm swap}\,R_2 \\ \vphantom{R_2} \\ \vphantom{R_3}\end{matrix} &\to \begin{bmatrix} 3 & -11 & -2 & -6 \\ 0 & -4 & 4 & 24 \\ 6 & - 17 & 1 & 18 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \vphantom{R_2} \\ -2 R_1\end{matrix}\\ &\to \begin{bmatrix} 3 & -11 & -2 & -6 \\ 0 & 4 & 4 & 24 \\ 0 & 5 & 5 & 30 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \div 4 \\ \div 5\end{matrix}\\ &\to \begin{bmatrix} 3 & -11 & -2 & -6 \\ 0 & 1 & 1 & 6 \\ 0 & 1 & 1 & 6 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ \vphantom{R_2} \\ -R_2\end{matrix}\\ &\to \begin{bmatrix} 3 & -11 & -2 & -6 \\ 0 & 1 & 1 & 6 \\ 0 & 0 & 0 & 0 \end{bmatrix} \begin{matrix}+11 R_2 \\ \vphantom{R_2} \\ \vphantom{R_3}\end{matrix}\\ &\to \begin{bmatrix} 3 & 0 & 9 & 60 \\ 0 & 1 & 1 & 6 \\ 0 & 0 & 0 & 0 \end{bmatrix} \begin{matrix}\div 3 \\ \vphantom{R_2} \\ \vphantom{R_3}\end{matrix}\\ &\to \begin{bmatrix} 1 & 0 & 3 & 20 \\ 0 & 1 & 1 & 6 \\ 0 & 0 & 0 & 0 \end{bmatrix} \end{align}\]

    Hence,

    (3.53)#\[\begin{align} x_1 - 3x_3 &= 20 \to & x_1 &= 3 x_3 + 20 \\ x_2 + x_3 &= 6 \to & x_2 &= x_3 + 6 \end{align}\]

    with \(x_3\) free.

  5. Solve using Gauss-Jordan elimination:

    (3.54)#\[\begin{align} 2x_1 - x_2 + 3x_3 &= -1 \\ -4x_1 + 2x_2 - 6x_{3} &= 2 \end{align}\]
    Solution
    (3.55)#\[\begin{align} \begin{bmatrix} 2 & -1 & 3 & -1 \\ -4 & 2 & -6 & -2 \end{bmatrix} \begin{matrix}\vphantom{R_1} \\ +2R_1\end{matrix} \to \begin{bmatrix} 2 & -1 & 3 & -1 \\ 0 & 0& 0 & 0 \end{bmatrix} \end{align}\]

    Hence,

    (3.56)#\[\begin{equation} 2x_1 - x_2 + 3x_3 = -1 \to \quad x_1 = \frac{1}{2}(x_2 + x_3 - 1) \end{equation}\]

    with \(x_2\) and \(x_3\) free.
